The following eBook explains how SiOBs enable wafer-level optical integration, thus improving the cost, precision, and size of micro optic systems.
SiOBs are a wafer-level platform, that efficiently integrate the many discrete elements of an optical system, including lasers, lenses, mirrors, photodetectors, filters, isolators, rotators, and couplers.

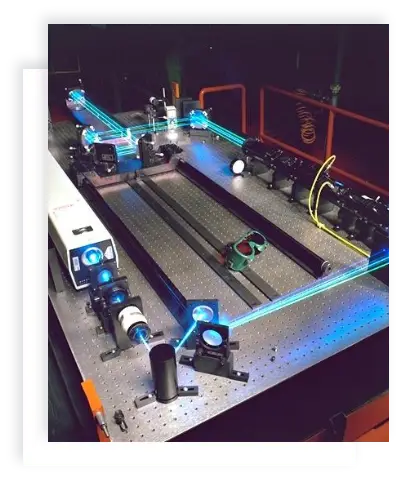

SiOBs are named after the benchtop apparatus, optical benches used by scientists to study light phenomena for more than a century. The concept of a SiOB is the same, except they use silicon with discrete optical elements such as lenses, lasers, mirrors, or beam splitters placed into kinematic cavities or pits in the silicon designed to precisely hold each element in the correct X,Y, and Z position.
Shrinking an optical bench down onto silicon affords many benefits over alternative optical assembly approaches.
Optical elements can be packed onto chips with sub-micron precision and density. The results are optical “engines”, sensors, and transceivers that are a fraction of the size of conventionally assembled optical systems.
The economies of scale and thus cost savings afforded by wafer level manufacturing are considerable. Wafer processes enable automated test and inspection, thus further reducing cost compared to serial testing approaches.
Lithographic precision of features combined with the latest advances in placement technology ensure that optical elements are placed within very tight tolerances, thus enabling high fidelity in the manufacturing of optical systems.
SiOBs can be engineered for low loss by leveraging free-space optical paths or coupling to low loss waveguides.
SiOBs are commonly topped with a lid wafer using wafer-level bonding techniques allowing for the creation of hermetic cavities for the entire optical system. This ensures high reliability and lifetime protection from environmental hazards such as moisture, oxygen and dust which can degrade the performance of many optical elements.
SiOBs make micro-optical subsystems that benefit industries facing pressure to shrink size, reduce cost, and increase precision.
Transceivers are currently the highest-volume market for SiOBs. As datacenters and telecom networks upgrade to 100G and faster data rates, the need for smaller and more precise micro-optical systems has increased.
SiOBs can be used to implement RF photonic links by precisely integrating the many required active and passive optical elements, e.g., lasers, photodetectors, optical filters and lenses.
AR/VR architectures require a complex integration of light sources, lenses, mirrors, and other optical elements. SiOBs are well suited to help shrink the size of these modules and simplify manufacturing with wafer-level processing.
Light engines are now being used to create 3D maps enabling computers to see. SiOBs integrate the various light sources, mirrors, photodetectors, or diffractive optical elements to miniaturize such systems.

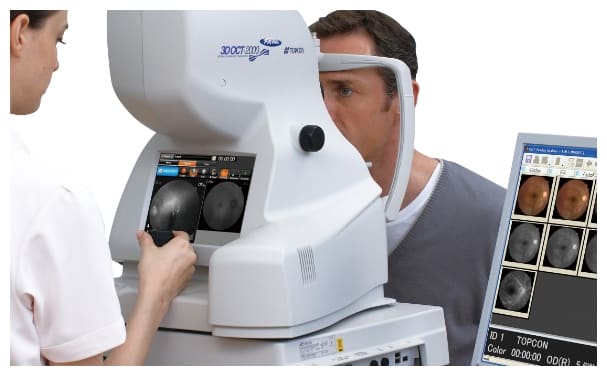

OCT systems require integration of many discrete optical components, including lasers, diodes, beam splitters, amplifiers and mirrors. SiOBs can shrink and reduce the cost of such systems thus making them more affordable to optometrists.

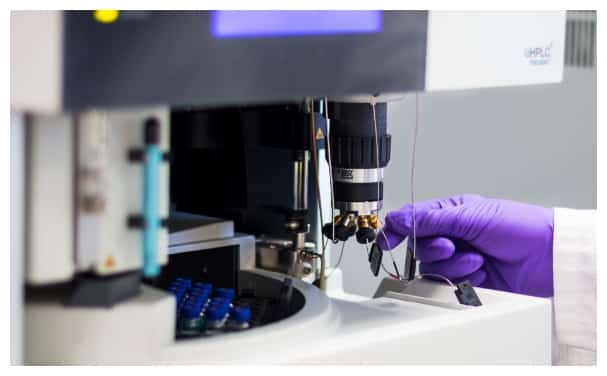

Biochemical or gas sensors often require complex micro-optical systems. SiOBs help shrink these systems thus reducing their cost and allowing for wider adoption outside of the research lab.

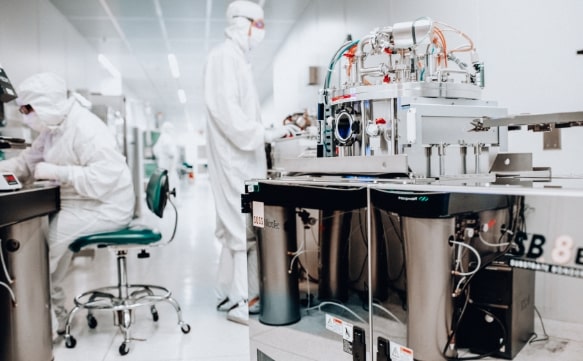

The design and manufacture of SiOBs requires a complex set of technologies and process capabilities. This brings together disciplines not commonly found under one roof. Anyone considering the use of SiOBs would be well served to consider the variables and processes discussed in the following eBook to ensure the right partners to field a successful product.
"Silicon Optical Benches" - Enabling Wafer-Level Optical Integration to Improve the Cost, Precision, and Size of Micro Optic Systems
